Tag Archives: Yurts

Acrylic Canvas

Yes, to most tent people, the idea of acrylic canvas, sounds strange and unnatural, on these beautiful, traditional nomadic structures. But, the truth is, of course, that to make cotton and polycotton able to withstand the elements in a European climate, various chemical products need to be applied. Don’t worry, all have passed safety tests.

If you have lived in or worked with canvas, you are well aware of the black spot mould which appears and the inevitable deterioration of the fabric. We recommend, every year, to clean the canvas with a soft brush and mild detergent and then to reproof the canvas with a reproofing solution (we can supply a paint-on FWR (flame, water and rot-proofed) solution). Acrylic canvas, however, doesn’t rot.

8 years ago we made this yurt cover for Tithe Farm B&B in Lincolnshire, England. They chose to have acrylic canvas, rather than the usual cotton canvas we were working with at that time, for longevity.

After standing outside for 8 years in Britain (to quote Biff Vernon, the yurt owner): “The fabric is still completely waterproof. The only problem we had was that where the six ropes that hold the top star down rub on the canvas at the roof/wall angle little holes have been worn. We stuck patches on with fabric glue to reinforce these and wrapped the ropes in a fabric sleeve to reduce the pressure. That might be less of a problem with curved roof poles but ours are straight so there’s quite a sharp angle”. (This issue can be prevented by threading a small piece of clear plastic hosepipe onto the star ropes, to sit on this shoulder of the roof rafter).

(Guess which is new and which is 8 years later).

image2-3

A more natural fabric like cotton or even polycotton would have well perished long ago in these conditions. The synthetic fabrics are woven and look very much the polycotton, only hang a bit more stiffly.

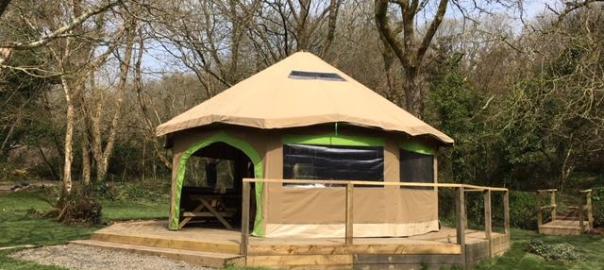

And here is the lovely little wedding pavilion at Cornish Tipi Holidays which we made 7 years ago, which we have heard, is still fine, only a bit ‘not perfect and wedding’.FullSizeRender-4

FullSizeRender-3

These fabrics were PU coated, but we are now working with a FWR (flame, water and rot-proofed), fabric in which the proofing is in the fibres themselves, so is permanent, and can’t be removed.

Acrylic canvas is expensive, and not for everyone, but weighing up all the odds and external conditions, may be worth the investment, especially for a more upmarket look.

Spirits Intent Yurt Covers

Perfect yurt coverWe have been sewing Yurt Covers in our way for many years and have never really written about how we do it and what makes us special. So here goes…

The main thing that makes us different from other yurt makers is that we usually make our yurt covers without seeing the frame. “So how do we do this”?, you may ask. Well it is a fine art that we have refined and fine tuned over the years, and have now made (literally) hundreds of canvas and felt yurt covers in this way.

Yurt covers

It is an ancient recipe starting with a measurement sheet which we send to be completed by the yurt owner, with lots of clear instructions to ensure the process is idiot-proof (although there have been a few cases…). We then add lots of circle geometry, a bit of algebra, Pythagoras theorem and sometimes some trigonometry, before getting out our amazing Vietnamese scissors to start cutting the canvas, the webbing, the cord and all those little bits and pieces which make our yurt covers so delicious.

Making yurt covers on siteTop quality canvas is an important ingredient in the pot. We usually make our yurt covers from 12oz polycotton canvas which is flame, water and rot-proofed, and have worked with the UK’s canvas proofers to raise the ‘water head’ (level of water proofing).

And we make our yurt linings with a really snuggly wool felt.

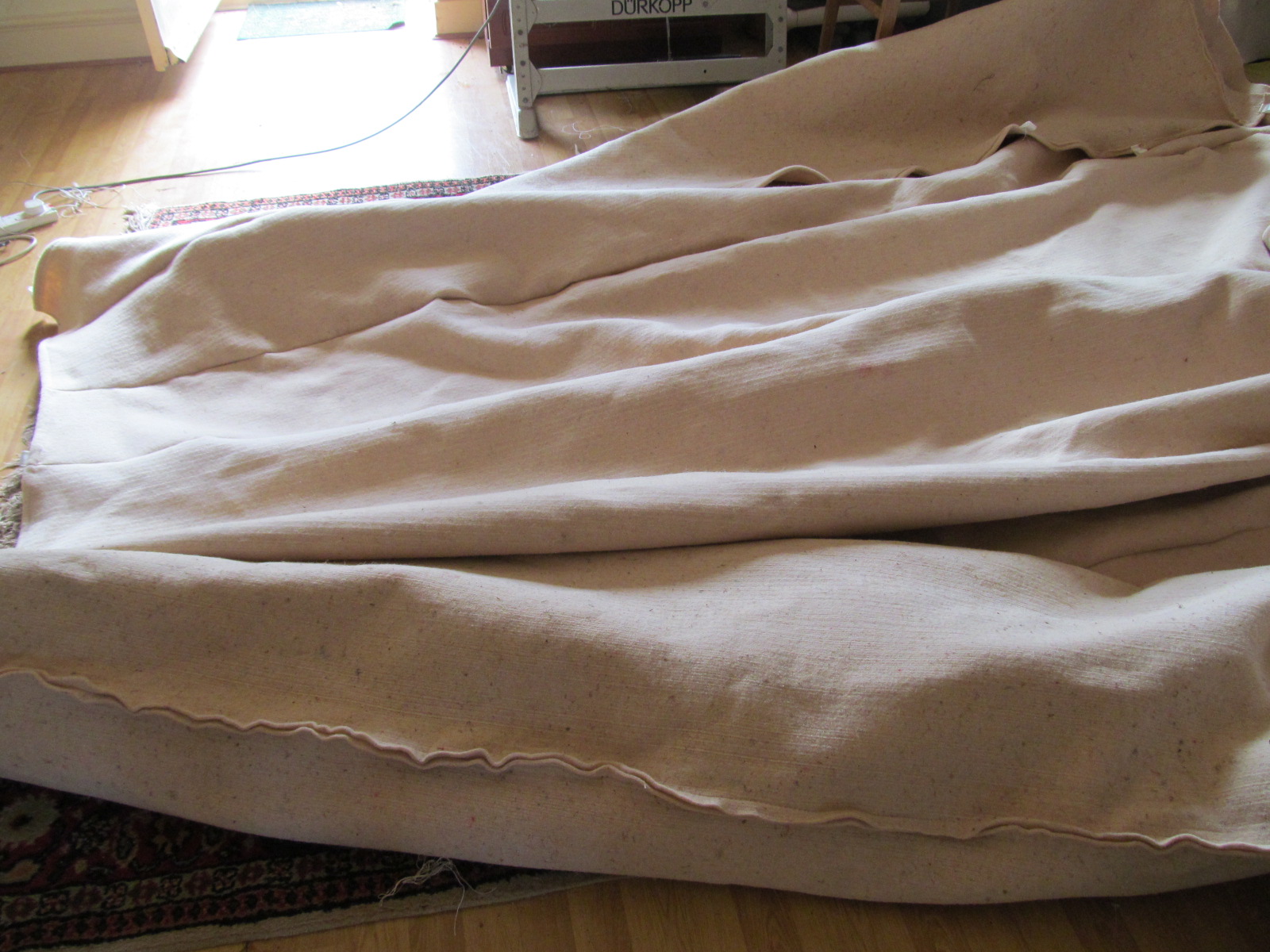

We have two trusty sewing machines, both walking foots (feet?) which means that the heavy fabric is always held tight from slipping. One is a Durkopp-Adler, and the other a Seiko. The Durkopp is the Rolls Royce of sewing machines (which means a tiny screw can cost £75), and is fast, good for the long stretches. It can also sew through a surprising number of canvas layers. The Seiko is better for detailed work like windows and it is lighter to move around so is the one that usually goes out on missions.

Yurt cover sewing machine

Sewing yurt covers
Windows are nice in the yurt covers: as our late friend, Bill Coperthwaite used to say ‘there is something indescribable about the view through a round window’ and I would also recommend opening ones, which we used to do only rectangular, until we worked out that a round hole with a rectangular PVC opening bit was much easier and nicer etc

Window in yurt cover

Round yurt window
…and we like doing decorative details..it makes life interesting.

Coloured yurt coversWe decided a few years back that it was time to share our secrets with the world so we wrote ‘The Yurt Cover Sewing Course’ which reveals all tricks of our trade.

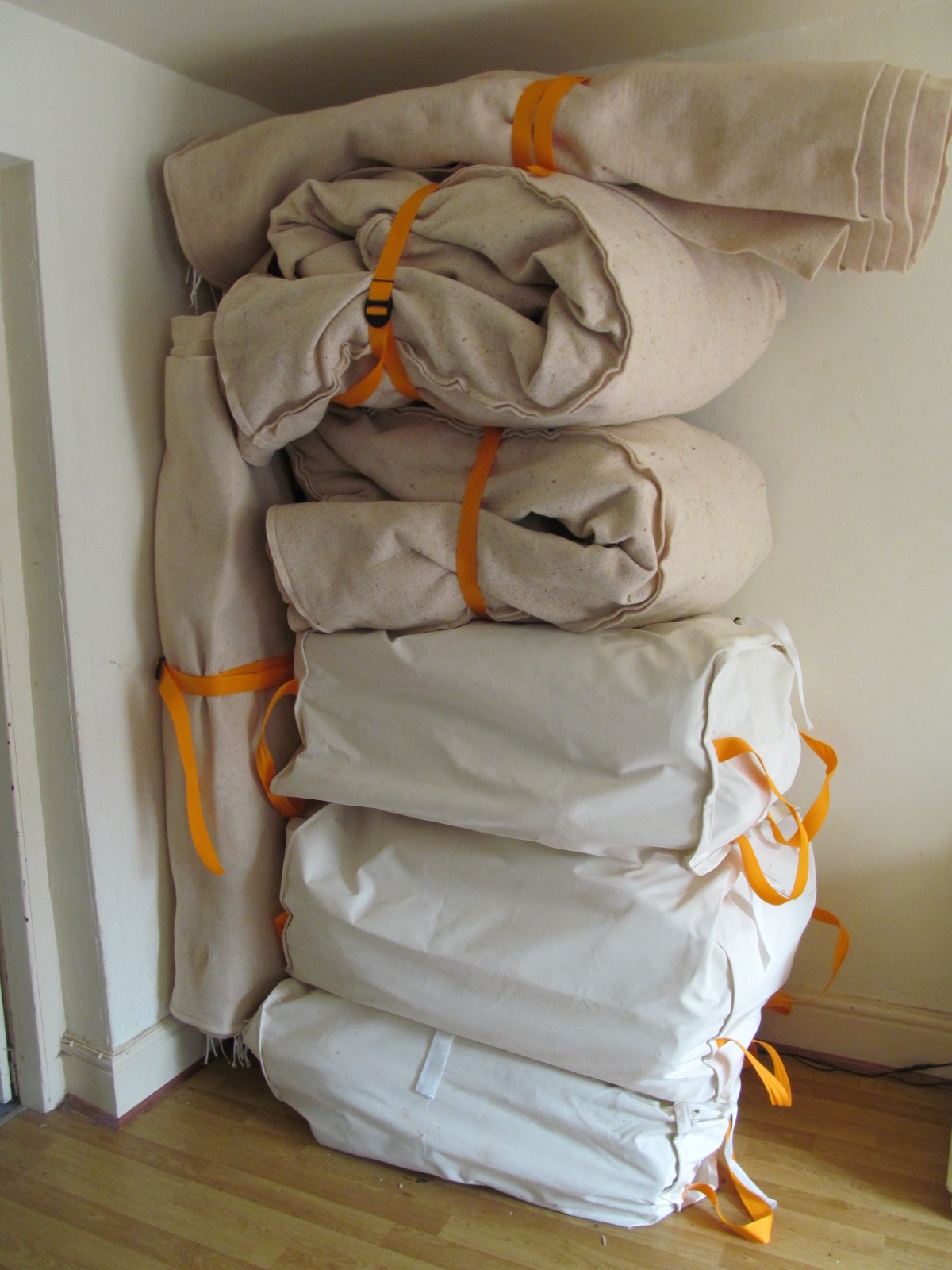

It is always a lovely moment when the cover is all packed in the bag, and ready to be picked up by our latest friendly courier. As we make our yurt covers at a distance, we don’t usually get to see them up, so it’s good when customers send us photos and feedback. We will always hear when something is wrong, but not always when things go right. It’s often a case of needing to hold the intent until we get the thumbs up.

Yurt cover bag
Now, once again the wild Easter sewing rush has begun, so we have sharpened the scissors and got our thimbles out to be ready for the storm….

Yurt Cover tools

Open Fire Yurt II: Flames Within, Flames Without



Our open fire yurt, based on a yurt of the Firuzkhui from northern Afghanistan, finally went to its rightful/leftful keeper. So we moved it to let it go on…

The bottom picture shows the yurt in its new home and the one above it is a true yurt. *The word ‘yurt’ comes from a Turkic word which means the imprint left on the ground by a moved ‘yurt’ (the round tent with vertical trellis walls and conical roof), and extends to meaning  a person’s homeland.  In modern Turkish the word “yurt” is used for a homeland or a dormitory. It has become used in many other languages as the tent-like dwelling which we all know and love.

open fire yurt







open fire in a yurt

Canvas roof and felt walls



yurt felt

Just the under clothes



A little lizard living under the canvas

A little lizard living on the felt under the canvas



yurt felt

Felt coming off



afghan yurt



afghan yurt frame





yurt frame





a yurt





fire in a yurt



Felt like Autumn: Yurt Felt Linings

yurt felt lining inside

inside with felt

There is a bit of a nip in the air,  the nights are drawing in and, as well as other things, we are sewing yurt felt linings: this time a big one for a 32′ yurt we made the canvas for earlier in the year.

Yurt felt lining calculations

Felt like calculations

yurt felt lining

Felt like cutting the Roof

It is surprising how much difference a felt lining can make, both for coolness in the heat of summer and warmth in the freeze of winter. I only appreciated this when living in a yurt with a wool felt lining in a Hungarian winter where it got to -22 degrees C. There was still that moment of hesitancy before braving the distance between bed and stove, with the water frozen solid in the cup next to the bed. But yurts are easy to heat and once the stove was fired up, it was possible to sit naked for the morning cup of tea.

Firuzkhui yurt felt lining

Felt lining on the open fire yurt. (The hole is for the stove chimney.)

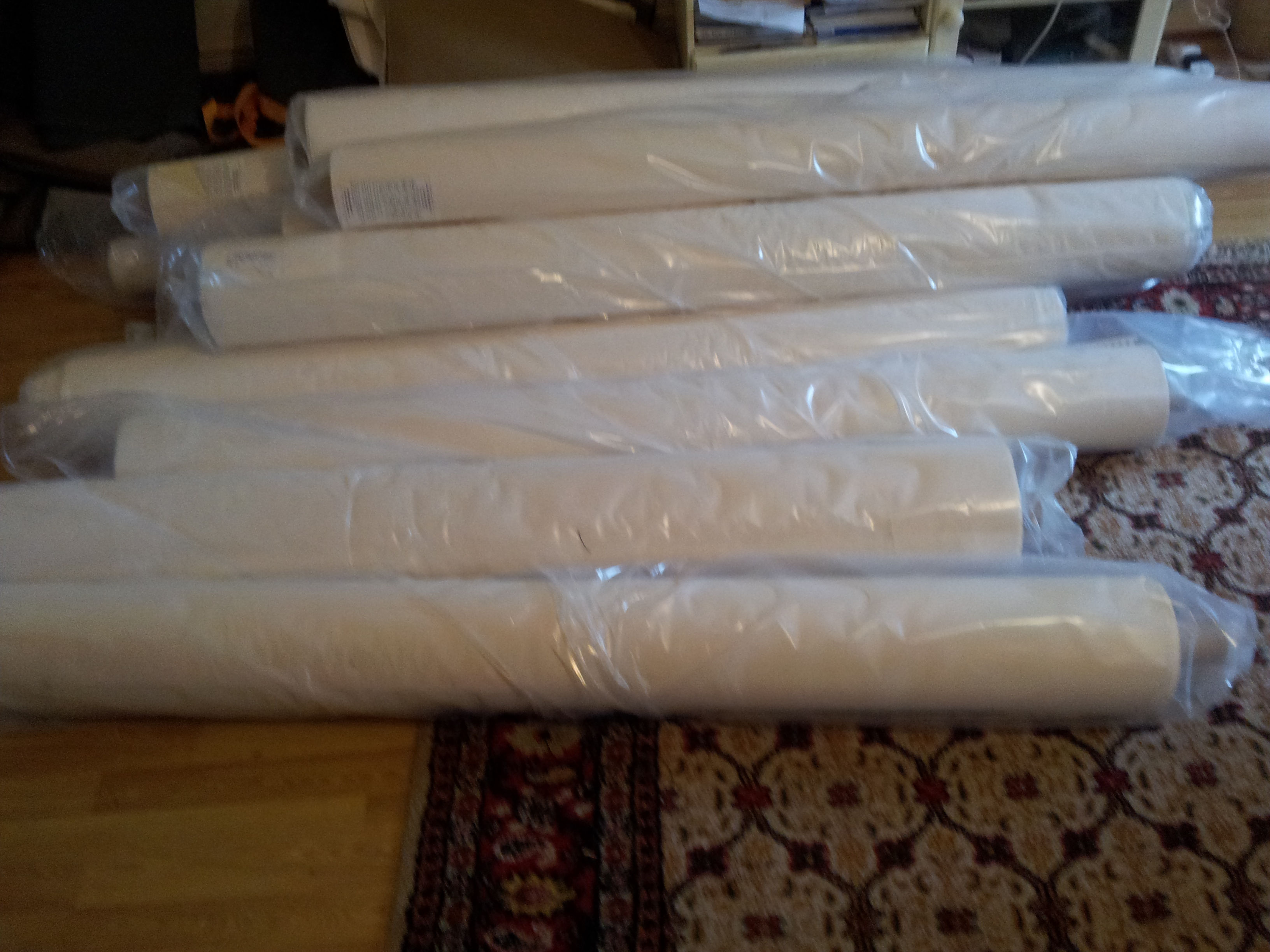

It’s kind of funny that the 100% wool felt we use comes from Europe, and we are currently living in a part of Wales where there are about 48 sheep to every human. Wool wool all around. The sheep are mainly farmed for meat and wool is a by-product. Anyway,  making enough felt for a yurt lining is a lot of work.

welsh sheep

Welsh sheep

Traditional yurts, of course, have thick felt outer covers as, in the Central Asian countries where the yurts are used, there are extremes of cold and hot, but not wet. The felt’s natural oils and thickness are enough to keep the moisture out, but when the yurt came to the West, an outer waterproof layer was needed. The American yurts went mainly into vinyl, the European went into cotton canvas.

yurt felt

Kyrgyz Yurt

Felt is believed to be one of the earliest textiles and the traditional process is a huge task, usually done by the women of the group. The Mongolian method involves beating the wool first to clean it, then laying it out with the fibres parallel before rubbing water into it. It is then wrapped around a large pole and fastened securely and this pole dragged behind a horse or camel to bind the fibres together. Only then, when the felt is complete with no holes, is it cut into the shapes for the yurt cover, then sewn together by hand.

So if you want a felt lining for a yurt, let us know, and we can start shearing the 100 or so sheep we will need and harnessing the camels, before threading our sewing needles.

Tales of Yurt Power: Thunder Yurt

Remember the two storey yurt , and its’  frame,  which was made from the Kyrgyz frames that we acquired from a French yurt maker? Well there was one complete yurt frame left over, which we covered for a woman who backed out in the end, but somehow it had this strange power that whenever we put it up, the Thunder and Lightning Beings came out, and a big storm was all around. So it became   ‘The Thunder Yurt’ and if you look at the picture below, you will see the lightning captured,  as a big Thunder Bird.

Thunder yurt

The Thunder Yurt

Tales of Yurt Power: Two Storey Yurt



This chapter of the Tales of Yurt Power, is about the Two storey yurt which we built a few years back on the Canvas Chic campsite.

Two storey Yurt France



We had been dreaming for awhile about the magnificence of the tent palaces of the Mughal Emperors  and were designing our own…like a two-storey yurt…

…a good place to begin this story is when I went to Canvas Chic in the Ardeche region of France to open the doors on all their yurt covers.

Canvas Chic was one of the original yurt campsites, in fact they probably coined the word ‘glamping’, and was situated in a beautiful green (Mediteranean) oak forest on the edge of the Ardeche gorge, with its magical prehistoric caves, rushing river and free roaming wild boar. (I say ‘was’ because not long after we were there, the owners sold the site and took the name ‘Canvas Chic’ with them, leaving their name ‘Milles Etoiles’ (a thousand stars) for the new owners).

Canvas chic yurts

Canvas Chic site

The ‘opening the doors’ task was so called because they had bought new wooden doors for all their 14 yurts, which were bigger than the old ones, so the canvas needed opening up at the doors.

Some time later, when we were on the road in our nomadic workshop, we were called to Canvas Chic to make a cover for their terrace, which evolved into to a Turkish Pole Tunnel Tent using bent chestnut rafters, going into an oak ridge pole.

Turkish Tunnel tent

Turkish tunnel tent

The next project somehow became the Two Storey Yurt (remember here that the truck was built with this in mind…)

But how to do it…? When we were wondering how to make the frame, we heard about a French yurt maker who had bought a few Kyrgyz yurt frames with the idea to make a yurt-related structure, but had decided to take his family on the road in a horse-drawn wagon, so was selling the components. We worked out that by cutting some of the roof rafters down, magically it was exactly what we needed for the two-storey yurt frame, and one other yurt (but that’s second story). The Kyrgyz make their frames from willow by hand, shaping the components with a toothed draw knife, which are then coloured with an orange-red dye.

Trucks and Kyrgyz Yurt

Nomadic workshop and Kyrgyz Yurt frame

We weren’t so into a central pillar or an internal staircase as they would block the space, so the fixed deck for the top 20’ yurt sits on 8 pillars, with a side supports held by lots of metal. The rim of this deck then acts as a big wheel for the lower 30’ yurt. The staircase became an outside spirally one.

Two storey yurt upper deck

Deck in process

There was a willing group of volunteers who helped with the building process, which involved being transformed through the up cycling of an industrial stove for the metal of the deck (and conscious cooking).

Two Storey yurt bottom deck

Bottom yurt frame in place

two storey yurt looking down

Looking up from bottom yurt

We thought it was going to be quite a job to put the top yurt cover and frame up, but it ended up being relatively simple, by doing it inside-out instead of outside-in. (Those who have ever erected a yurt will know what I mean).

The two-storey yurt was finished in time for the first Yurt Makers Conference Gathering, where yurt makers and experts came from all over the world to play, vision and eat a lot.

Two storey yurt

Two Storey yurt complete

Our aim is to encourage more campsites to incorporate a tent palace at the centre to bring the people closer to a tribal feeling: the the true magic underlying the campsite experience, where a group of people come out of their separate lives, live in nomadic shelters and get a feel of the group mnd.

Yurtshire and yurt covers in the making

Our spring cover rush has come to a head this week, when we were called to increase the size of the yurt covers from one of the Yurtshire sites: all three yurts were to be extended from 16’6″ to 17′ diameter. The yurt covers we made were perfect but it turned out the frames were erected too small when the measurements were taken (we make all our covers from measurements so we usually don’t see the frames), and now needed to grow some to allow for all the furniture. We took our Mercedes camper-Worksop truck, loaded with a sewing machine and all the equipment needed to do the job. And drove through the night to Umberslade farm, home of the lunar festival. 20140523-180648-65208032.jpg The three yurts looked so perfect on arrival. Yurt cover before adjustment I was wondering what the owner was thinking, I thought wow what a good job we did, as he was late we thought to ourselves maybe we can just tell him we fixed it when he gets there without doing anything. But being the nice elves we decided to start stretching the yurt covers using some Spirits Intent cover wizardry.making yurt covers on site We were somewhat tired from not having slept properly, although driving through the night brought the nomads in us awake. So by the time the owner arrived with some extra covers from one of the other Yurtshire sites, it was getting very clear it is going to be a very long day. We had to get one of the yurts changed while the holiday makers were still using it. So that was the main challenge for lunchtime, they agreed to give us an hour to do so, with some extremely fast roof cover magic we got that done, and when they came back they said they did not even notice the difference (don’t know if we should see it as a compliment). Yurtshire yurt cover It was now mid afternoon and we still had to open two yurt roofs, and extend the walls of both, the weather forcast was for heavy rain in the night, so leaving the yurts roofless was no option. We were sewing for all we were worth, and so when our friend Henry Dowell (fellow yurt maker) came to collect his 32ft cover, we were in stitches, not sure if it’s because we were so devastatingly tired, or that the jokes were actually funny. It was 21-00 pm and we realised we just did a 5 to 9 work day. Totally exhausted we went home into the truck to sleep, the last joke for the night was “it was a really hard day’s work (understatement) just to stretch those yurt covers a few cm”. It was near death by yurt making, we thought it was funny anyhow. In the middle of the night the rain came quite hard.. overland truck and yurt covers making …so at 4 am one of us (not saying who) went out to put the chimney through the star cap. I guess we earned our breakfast. yurtshire yurt covers complete And so on departure the three yurts looked lovely (but not very much unlike when we arrived). Tom Sterne (the owner) was fun to work with, and we both agreed the yurts did look better, it was amazing how much difference that extra space did.

Tales of Yurt Power: The Elfi

So the background of this tale is that once upon a time we were in Wales building two 4×4 trucks to go on the road: an oh-so-sweet Unimog and her big brother: a Mercedes 1820.

We had done the outer structure on both: put on bodies, spray painted them (the original “yellow in the Welsh rain saga“), added ‘Spirits Intent’ stickers, put windows and doors in the boxes and, a crane at the back of the 1820 for good measure.unimog 1300L and mercedes 1820

But then the cosmic clock said its ‘time to go’, so we ended up buying a Brockhouse Army trailer for living in, which was to be towed by the Unimog, loaded up the two trucks with everything else: the materials for doing the interiors (such as insulation and piles of red oak tongue-in-groove), the combination saw machine, the sewing machine, canvas…and 2 coppiced yurt frames which were nearly finished, and tumbled onto the road.

The Trailer (Stay tuned for the full movie)

The Trailer (Stay tuned for the full movie)

(Incidentally reversing the trailer which is a draw-bar, meaning it pivots both at the trailer and the Mog, was not impossible but almost).

DSC03255

Unimog 1300L, Brockhouse Trailer, and Mercedes 1820

Anyway, the core of this story began when we were waiting in Italy for the go ahead on another Yurt Power Story, this one involving our Garden Fairy. It was eventually a No on that yurt, and we were (literally) about to turn for France where we had another yurt cover job when…the ‘phone rang and it was an Elfi woman wanting to know if we had any yurts. (The Elfi are a group of wild communities mainly in Tuscany, north of Pistoia, which are either on the land, or in houses they made themselves or resurrected from the old mountainside dereliction). The internal builds of the trucks were coming along slowly on the road, but it would be good to have a bit have more room in them so maybe we can get to live in them, especially with winter drawing near, so we gave them a good price. We still needed to finish the frames and sew the covers.

We understand that the first sequence of an event is the ‘map’, the blueprint for the whole story. This map was that when we went to meet the Elfi woman (elfess?) in a tiny hamlet, there was no room to park which, as you will see was to be played out in the body of the story.

The roads up to ‘Casa Sarti’, the community who had invited us, are narrow and winding so the 1820 and the trailer would never have made it but the Unimog did! Looking for a place where we could park and work on the yurts somehow, one of the communal fields seemed the only option. That evening saw a community event in the opening of a new forno (pizza oven), and we met all the players. When we asked them what they needed they all said, RAIN, as it had been dry for a few months. I told them we could do rain, then we had all the dramas of the community run about us using that field.  There were all the objections: the cows, the road, the noise, the wells, the lack of water….so we would be going straight into the heart of the inner conflict of alternative communities. We realised we would have to find some other way to do it, maybe on the road somewhere.

That somewhere came when we returned to the petrol station where we had left the 1820 and trailer and the boss said we could stay there.

So life at the Tamoil gas station started, with a laid back boss who had a strong liking to wine lunch breaks and playing the clarinet.  There was not much room so we had to pitch the 22′ and the 16′ yurts concentrically and sew outside next to the trucks. concentric yurts concentric yurts We were finally doing it on the road. I think the gas station must have had 50% more clients just so they could ask what was going on.  It was somewhat hard to hold such a space, but it seemed that in comparison with the elfi politics  it was easy.

The trucks guard the space



Oh those seams

Seams good

The main issue seemed to be the weather, as maybe that long awaited for rain was on the way…so we did a little marathon to finish the yurts, and, as we finished the second yurt cover, the rain started.

22' complete in the Tuscan Tamoil

22′ complete in the Tuscan Tamoil

We got the boys to help and we drove the bigger yurt to the platform it was going to go on…. …and then all hell broke loose on our heads. We decided to stick it out, so we put that yurt in the strongest rain ever getting completely soaked, and even heaving to paddle ankle deep on the PVC groundsheet.

Reflection of the wheel in the lake made on the groundsheet

On the deck after the rain

On the deck after the rain

We later heard that that yurt had blown down in a storm. La Dolce Vita.

Tales of Yurt Power: First Yurt Frame

images-6This is the start of a series of stories of Yurts…starting with my first yurt frame

Many ways back we were on the road in Scotland, when the Morning Star asked me if I wanted to make a yurt, as we were at a vast ash forest. I had lived in tipis for years and had stepped through the door in sewing my first tipi, but yurts were a exotic new thing so I said yes, knowing that by cutting that tree, I was committing see the process through, wherever it led me. We made the frame totally by hand, starting with making sections for the wheel and the door using an adze by the side of the road in the Sma Glen.

We then found a place where I could stay whilst making the frame, where I first learned about steam bending the wheel, and the heartbreak when the lathes break. After making the rest, I eventually made the wheel with an Eastern princess.

Here it is...in a park in Perth

Complete …in a park in Perth

The story called me to the Holy land before I could make the cover, and being the days when the internet was young, I put a for sale card in the local supermarket. “Yurt frame for sale”. Amazingly in just a few days I ended up selling it to a woman who was yurt inspired after freshly returning from Mongolia.

I was to learn to make yurt covers, in the Galilee, Israel, at the other side of the story line…but that’s another yurt story…



sma glen

The choice will be upon us soon, tae set oor destiny
An we’ll drink a toast tae Scotland yet, whatever yet may be
